Peanut - Android

These set of instructions will assist you in setting up your AndroidOS 4.x and up phones & tablets to get in the Peanut rooms, which comes in handy when you don't have access to your radio.

DMRId (read the guide on how to get one).
Peanut access code (apply at Peanut website)
Compatible Android 4.x and up device
Downloaded and installed Peanut app for Android or Windows

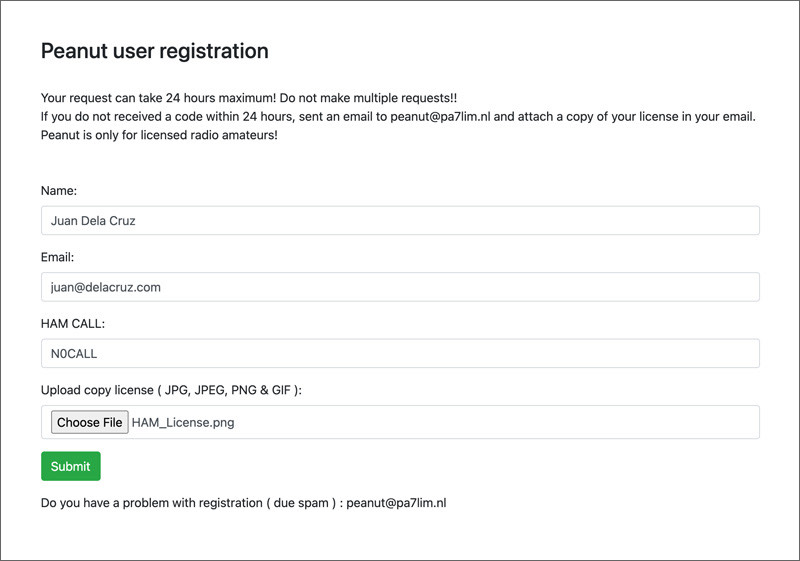

Peanut Code Application
Head over to the Peanut code application page and fill out the fields and upload your signed license (JPG, JPEG, PNG & GIF).


Once you have your Peanut code, move on to the next step. You should get your code in 24 hours or so.

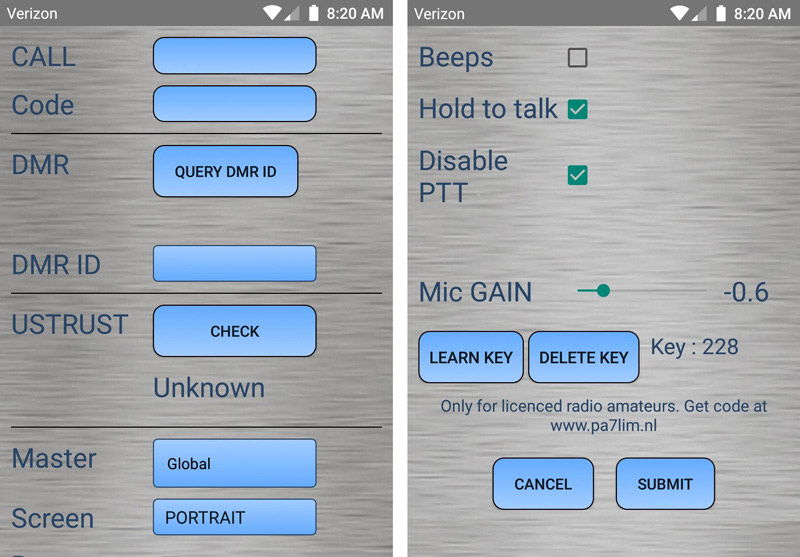

  • Launch the Peanut app and tap SETUP towards the top-right.
  • Once in the setup page, start filling up the important fields.
  • Place your callsign in CALL.
  • Click QUERY DMRID on the right of the DMR. It should fetch your DMRid(s).
  • If you have multiple DMRIds, select the one you want to use from the drop-down.
  • Enter the Peanut access code you received from your registration in the Code field.
  • If you don't have one, apply for one at the Peanut website.
  • Choose Global for Master.
  • Choose PORTRAIT (vertical) or LANDSCAPE (horizontal) for screen orientation.
  • Check Beeps, if you want it to conduct courtesy beeps.
  • Check Hold to talk to prevent accidental key-up hold.
  • Check Disable PTT, to deactivate the screen PTT if you are going to program a button for PTT.
  • Slide the Mic GAIN to -0.6 to start with, to prevent over-modulation, then adjust over sound checks.
  • Tap LEARN KEY to program a PTT key.
  • Tap DELETE KEY to unlearn a programmed PTT key.
  • When done, click SUBMIT and move on to the next step.

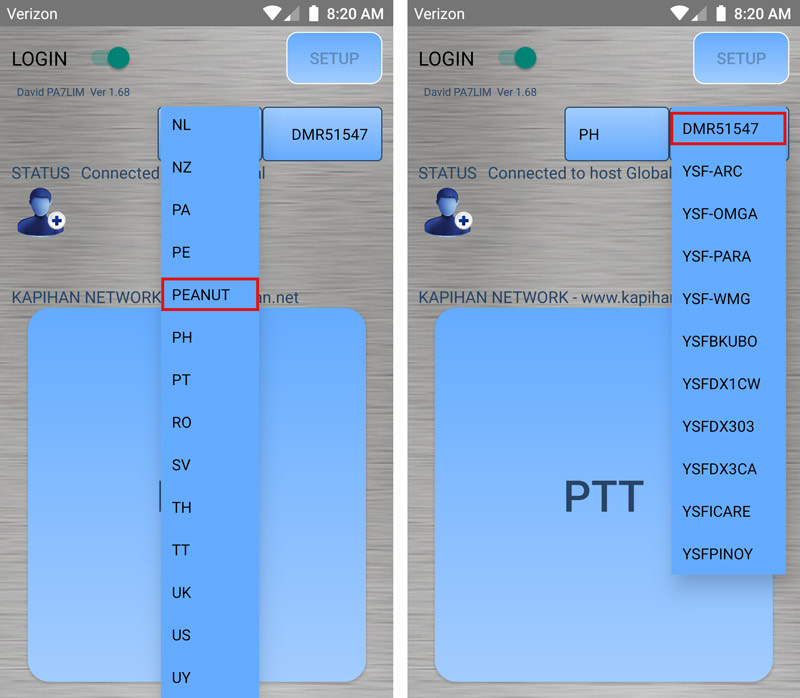

Category & Room Selection
  • Once back to the front screen, you will see the Country and Room buttons.
  • Tap and select category PH.
  • Tap and select room DMR51547.

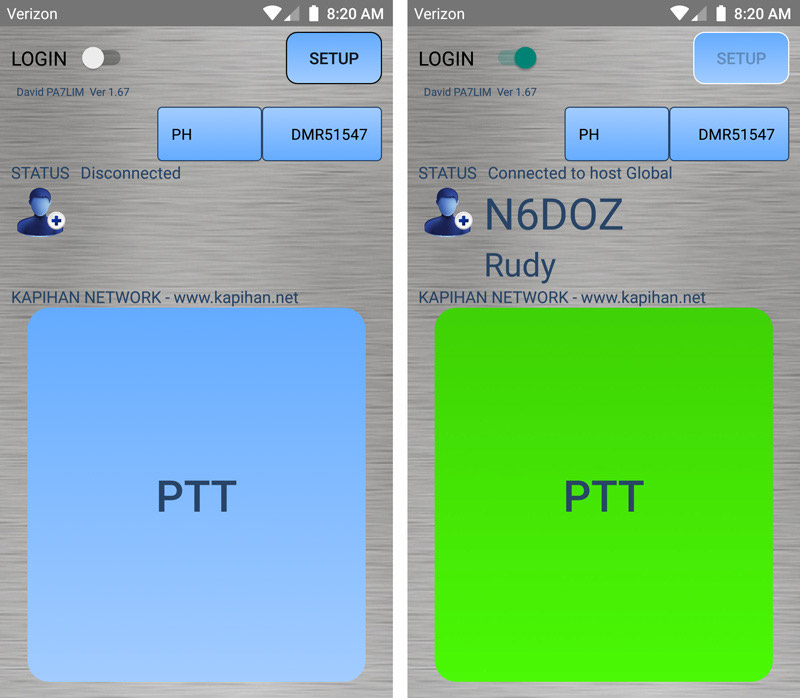

Turn On and Modulate
  • On the top-left is the LOGIN switch - tap it to turn it on.
  • Press the PTT screen button or your programmed PTT key and TX away!
If all went well, you should now be connected to the KAPIHAN Network via Peanut. Feel free to modulate and hope to talk to you soon! 7-3!

What is Peanut?

Peanut is a stand-alone digital protocol that has rooms which are either on their own, or bridged to networks - such as KAPIHAN Network's DMR51547 room.

It was created and is maintained by PA7LIM David. The server hosting the rooms are co-located by David and Ambe Servers used to transcode from protocol to Peanut are local to the room admin's QTH—running on Raspberry Pis or PCs with Unix equipped with DVMega DVStick30 or NW Digital Radio ThumbDV USB sticks with on-board AMBE chips.
